Industrial Couplings

Chain coupling performs outstanding durability with the torque on the coupling shared with the surface hardened teeth of the sprockets and the powerful roller chains that engage with the teeth.

Both shafts can be easily coupled or decoupled with a single joint pin inserted into or extracted from the roller chains.

The clearances between the chains and sprockets and between chain components absorb the great positional misalignment of both shafts.

SHAKTI Gear Couplings are made for high mechanical flexibility and torsionally rigid design. Gear coupling consists of two hubs, which have external teeth crowned over them, and two outer sleeves, which have internal spur teeth.

Features :

• Easy to install and maintain.
• Hubs and sleeves are manufactured with carbon steel, and very fine surface finish is maintained so as to provide flawless dimensional accuracy and efficient meshing of tooth.
• These are designed to resist corrosion, so as to increase the scope of application in various industries.
• Curved tooth profile brings about high mechanical flexibility.

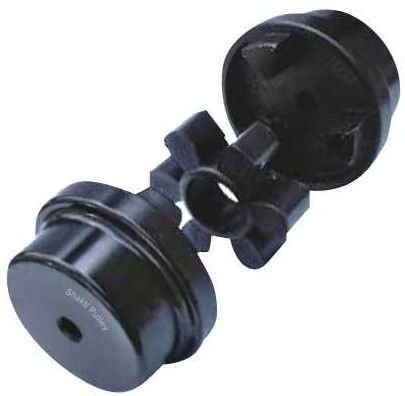

They allow for incidental misalignment, absorb shock loads and dampen out small amplitude vibrations. They are offered in both pilot bore, finished bore, and taper bushed with both face and hub mount. These semi-elastomeric couplings are designed for general purpose applications and permit quick and easy assembly by means of taper bush. Outside diameters are fully machined to allow alignment by simple straight edge methods.

Features :

• They can accommodate a high degree of misalignment with parallel misalignment upto 0.5m and axial upto 1.7mm.
• HRC Couplings require no lubrication and are virtually maintenance free, making them suitable for most environments.

Taper Bore Weld-on-Hubs are made out of steel, drilled, tapped and taper bored to receive standard Taper Bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers and other devices which must be firmly fastened to the shaft. Weld-on-Hubs are easy to install and entirely suitable for use where severe operating conditions are met. Weld-on-Hubs are manufactured to complement the Taper Bush range. All are manufactured from C45 Steel.

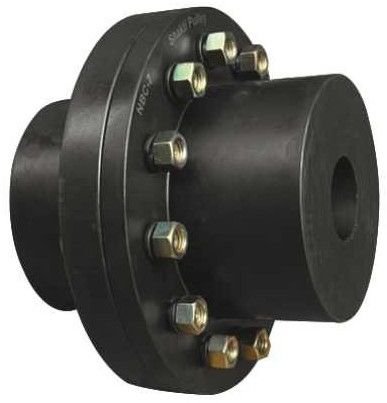

Pin Bush Coupling is engineered for the power transmission applications, where limited misalignment between the driven and the driver shafts occur.

It is a package of sophisticated construction and high torque transmitting capacity at higher speeds and is capable of absorbing shock loads.

It is unidirectional coupling, which can transfer torque in both clockwise and anticlockwise directions. Torque transmission in PBC takes place through high tensile steel bolts.

PBC is made for the least downtime; it doesn’t need to be adjusted after fitting nor lubrication is required. Its robust construction makes the flexible bushes unaffected by oil & grease, dustproof and unaffected from atmospheric conditions.

Features :

• Simple maintenance. No lubrication required.
• Dampens the shock and vibration.
• Standard range is available with cast iron flanges. For special application, we can provide forged steel flanges.
• Suitable stiffness for smooth operation. Bushes are specially provided with proper stiffness.

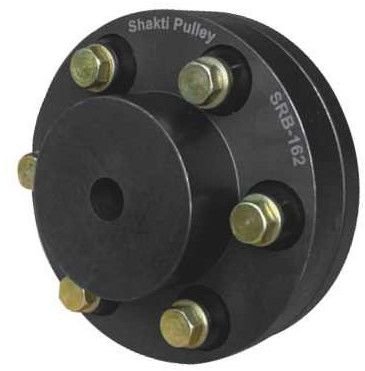

Pin Bush Coupling is engineered for power transmission applications, where limited misalignment between the driven and the driver shaft occur.

It is a package of sophisticated construction and high torque transmitting capacity at higher speeds and is capable of absorbing shock loads.

It is unidirectional coupling, which can transfer torque in both clockwise and anticlockwise directions. Torque transmission in PBC takes place through high tensile steel bolts.

PBC is made for the least downtime; it doesn’t need to be adjusted after fitting nor lubrication is required. Its robust construction makes the flexible bushes unaffected by oil & grease, dustproof and unaffected from atmospheric conditions.

Features :

• Simple maintenance. No lubrication required.
• Dampens the shock and vibration.
• Standard range is available with cast iron flanges. For special application, we can provide forged steel flanges.
• Suitable stiffness for smooth operation. Bushes are specially provided with proper stiffness.

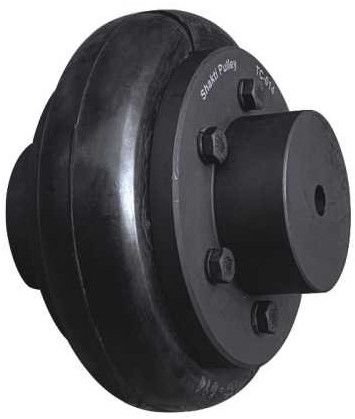

SHAKTI Tyre Couplings are highly elastic, lubrication-free that tolerate large amounts of misalignment in all the planes as well as offers simple installation and inspection without disrupting the drive.

Features :

• Upto 4degree angular misalignment, upto 3mm parallel misalignment capability.
• Lubrication free.
• Excellent shock absorbing capability.
• Dampens vibrations.
• Torsionally flexible.
• Low Maintainance.
• Easy Tyre replacement.

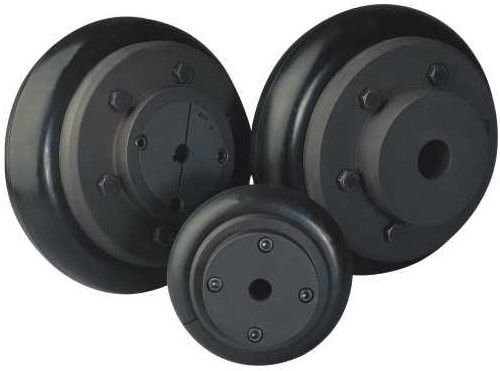

SHAKTI Tyre Couplings are highly elastic, lubrication-free, that tolerate large amounts of misalignment in all the planes as well as offer simple installation and inspection without disrupting the drive.

Features :

• Upto 4degree angular misalignment, upto 3mm parallel misalignment capability.
• Lubrication free.
• Excellent shock absorbing capability.
• Dampens vibrations.
• Torsionally flexible.
• Low Maintainance.
• Easy Tyre replacement.

SHAKTI Tyre Couplings are highly elastic, lubrication-free, that tolerate large amounts of misalignment in all the planes as well as offer simple installation and inspection without disrupting the drive.

Features :

• Upto 4degree angular misalignment, upto 3mm parallel misalignment capability.
• Lubrication free.
• Excellent shock absorbing capability.
• Dampens vibrations.
• Torsionally flexible.
• Low Maintainance.
• Easy Tyre replacement.
